Hotronix® Heat Press Power Platen™

Name: Hotronix® Heat Press Power Platen™
SKU: 18512716-1-1
Availability: InStock

$300.00 – $2,575.00

New

Hotronix® Heat Press Power Platen™ - Image 2

Hotronix® Heat Press Power Platen™ - Image 3

Hotronix® Heat Press Power Platen™ - Image 4

Hotronix® Heat Press Power Platen™ - Image 5

Hotronix® Heat Press Power Platen™ - Image 6

Hotronix® Heat Press Power Platen™ - Image 7

Hotronix® Heat Press Power Platen™ - Image 8

No more scorched garments.

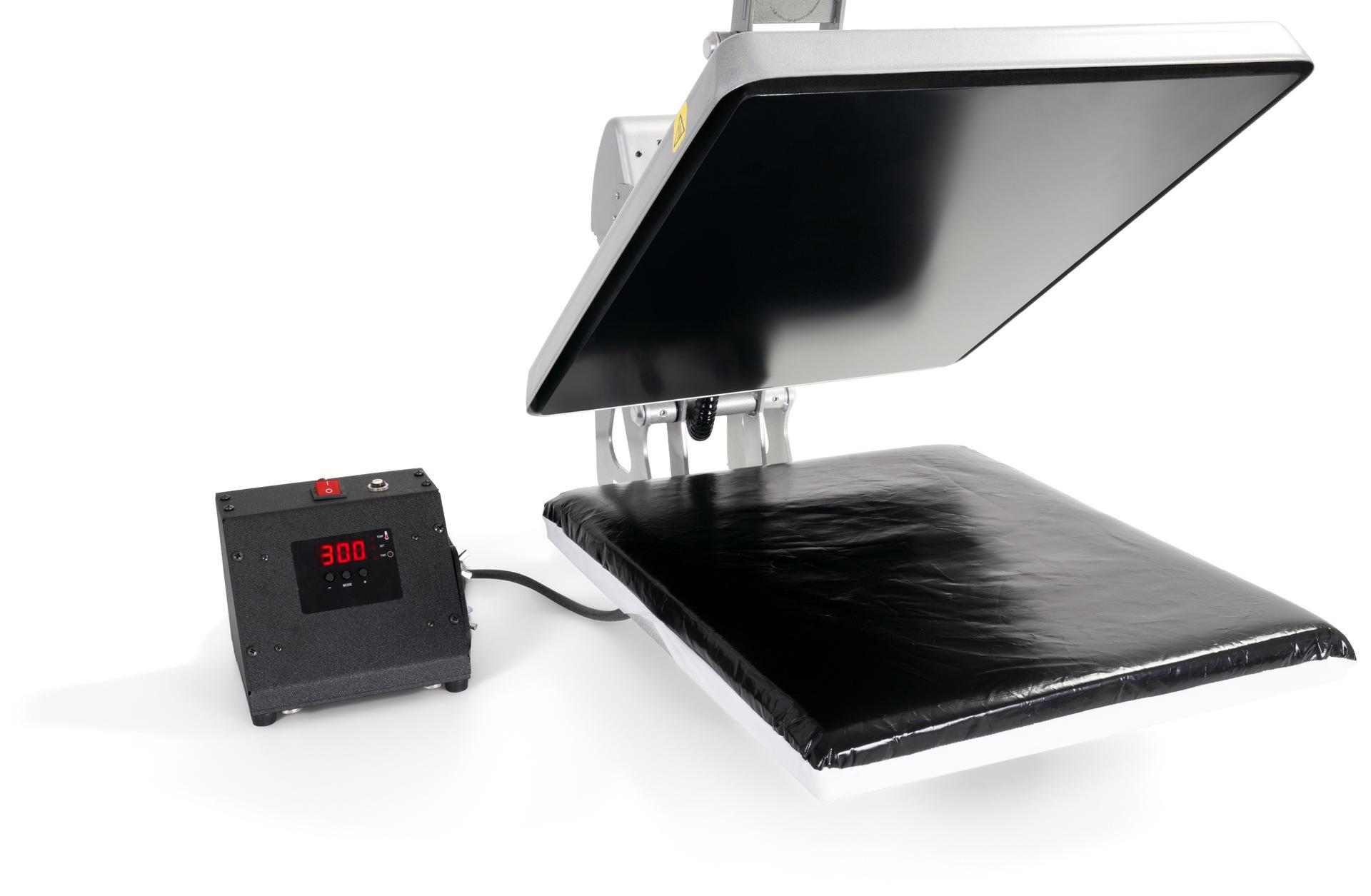

Designed to reduce the risk of scorch marks on heat-sensitive polyester or synthetic fabrics, this heated lower platen has a built-in heat printing pillow. Available in 3 sizes, each controlled by one interchangeable digital controller (sold separately).

- Application instructions are for polyester or synthetic fabrics only. Make sure to increase the time if you are using a thicker garment. Do not pre-heat polyester or synthetic garments.
- Compatible with 16″ x 20″ Hotronix® Auto Clam, MAXX® Clam, and Air FUSION heat presses. (Not compatible with Hotronix Fusion<sup.®< sup=””> or draw presses).</sup.®<>
- For heat presses with a machine born-on date before 2014, call Stahls’ Hotronix at 800.727.8520.

Power Platen At-A-Glance

to learn more.

Select

Control Housing

16 x 20

11 x 15

Sleeve/Leg 6 x 20

6 x 6

POWER Platen Family (inc. controller)

Clear

Call for estimated delivery time

Features

Application Instructions

- - Built-in pillow conforms to any substrate

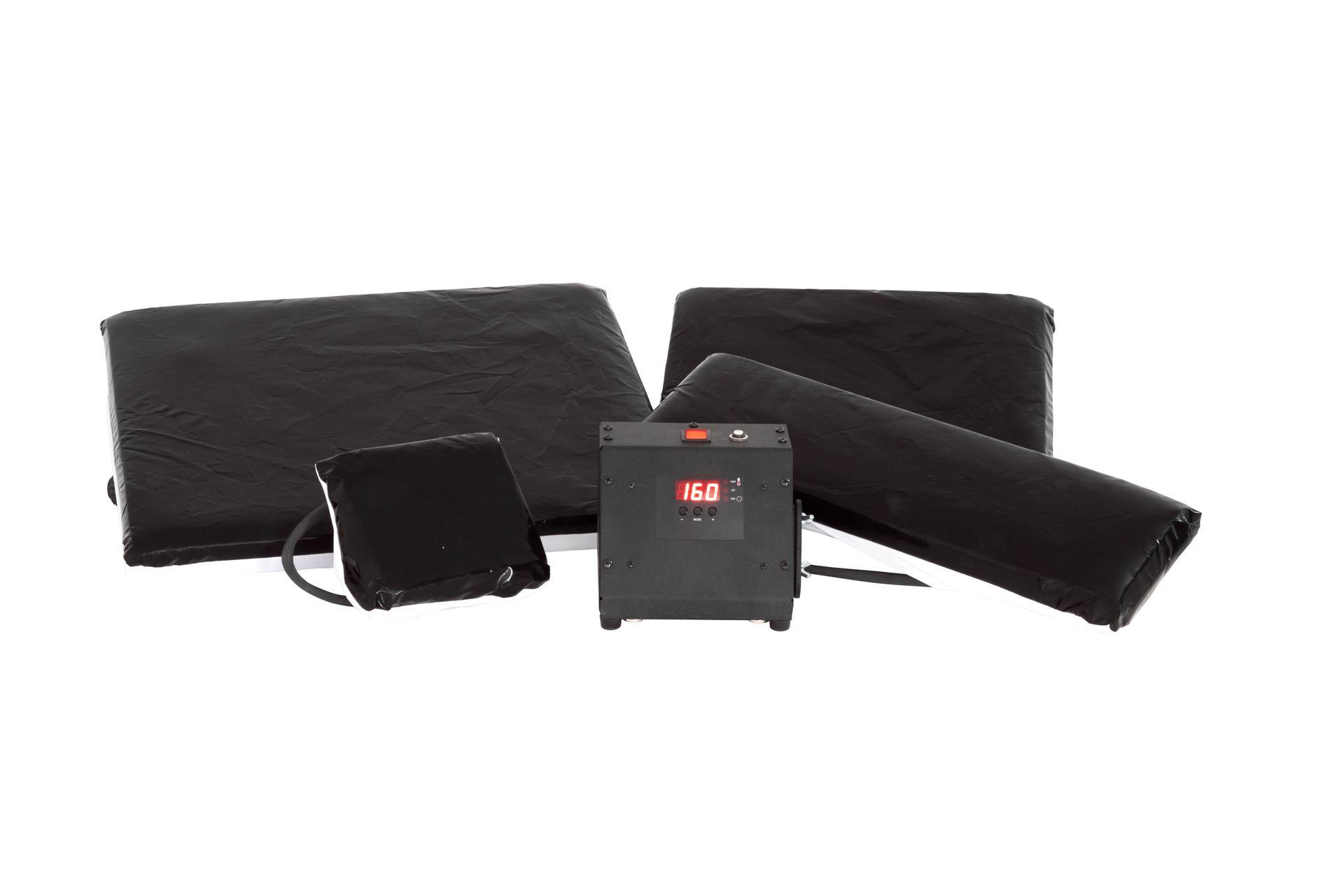

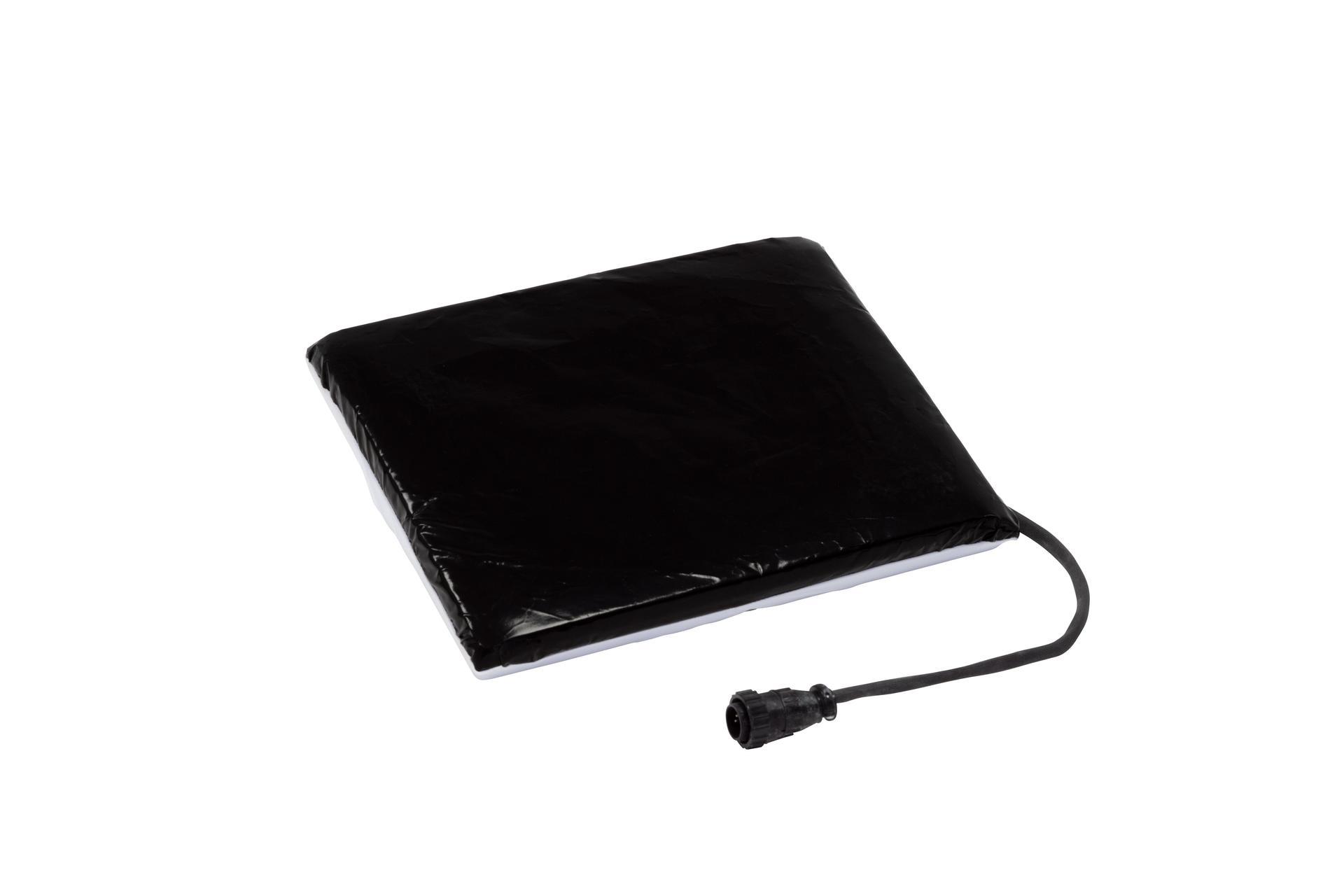

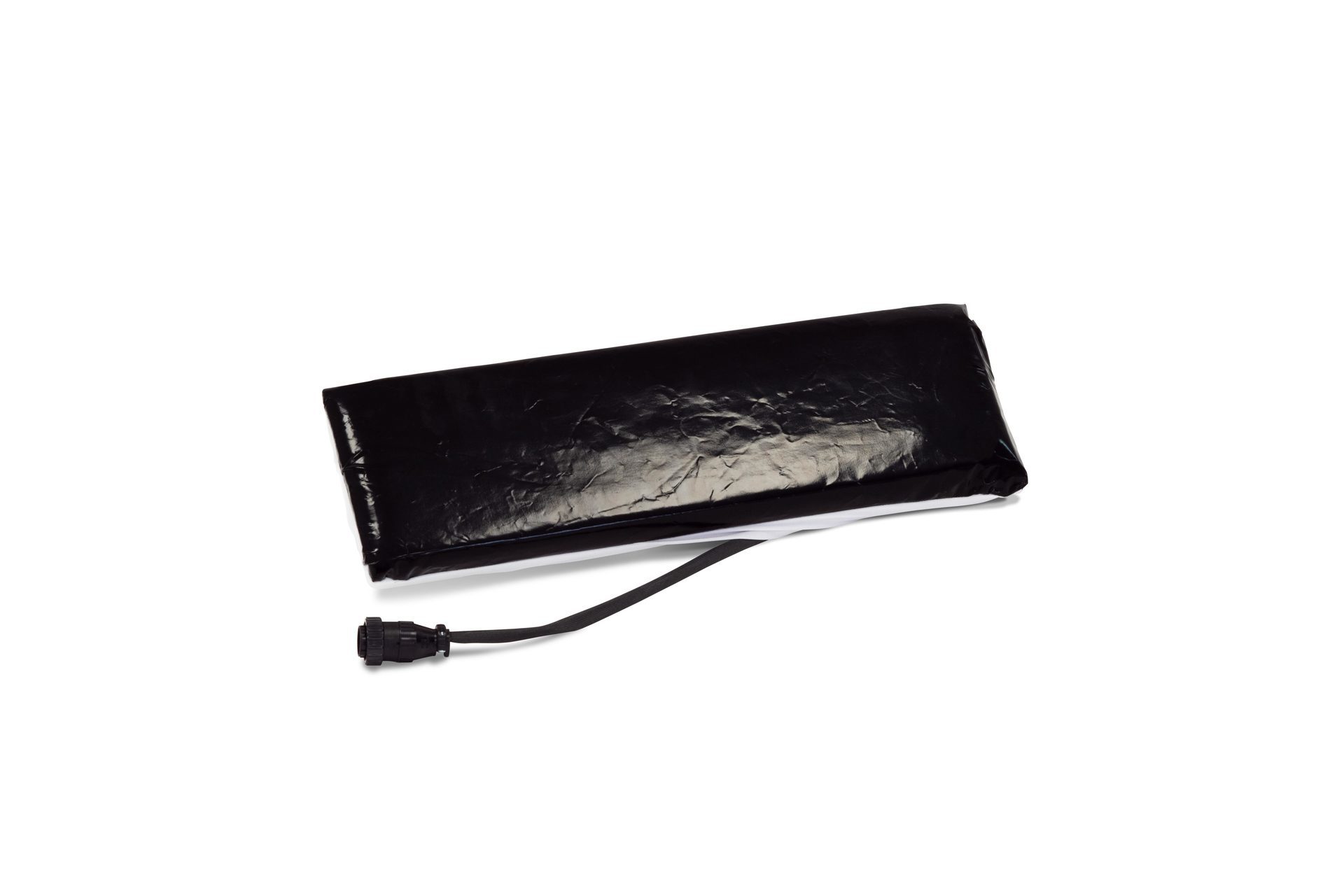

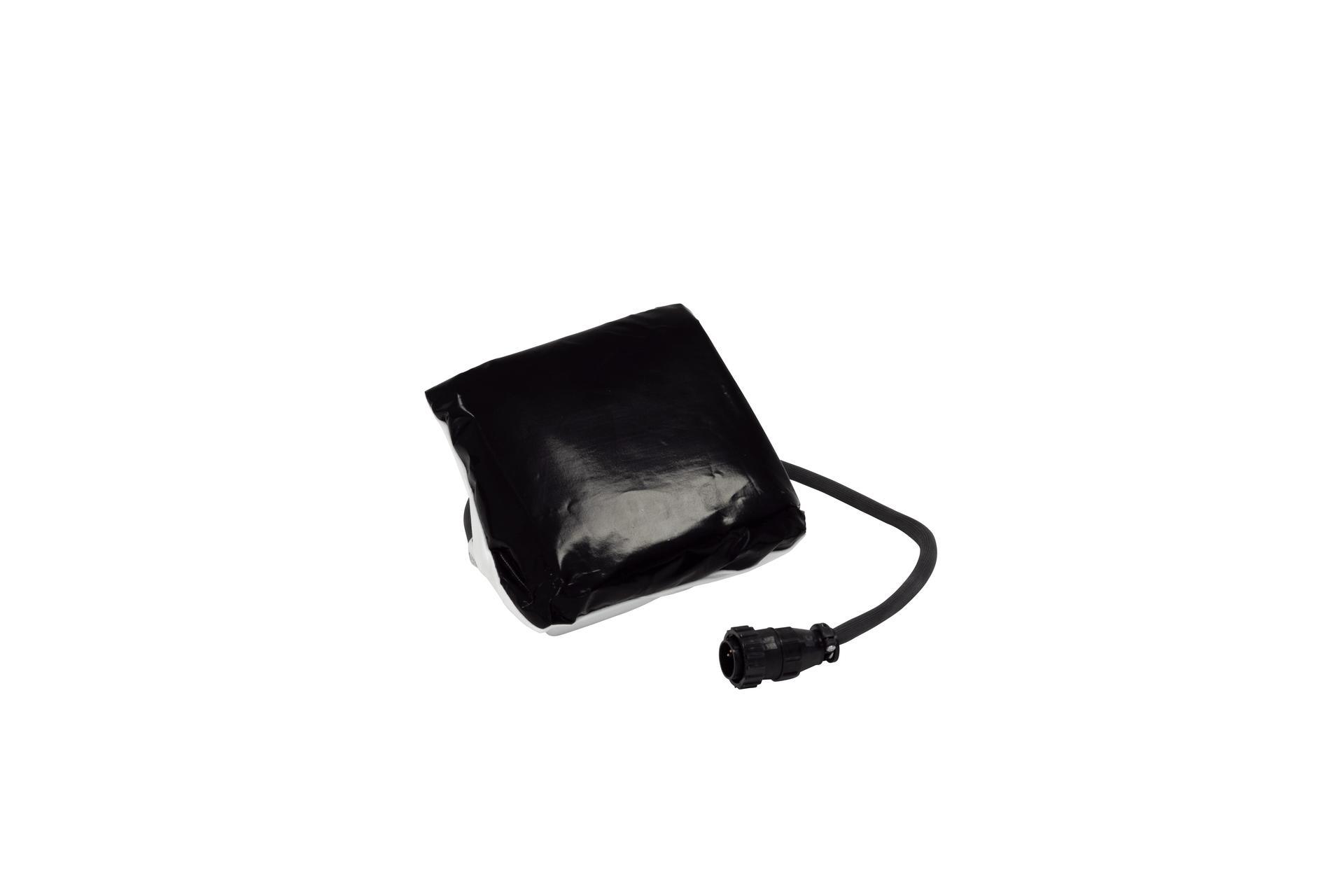

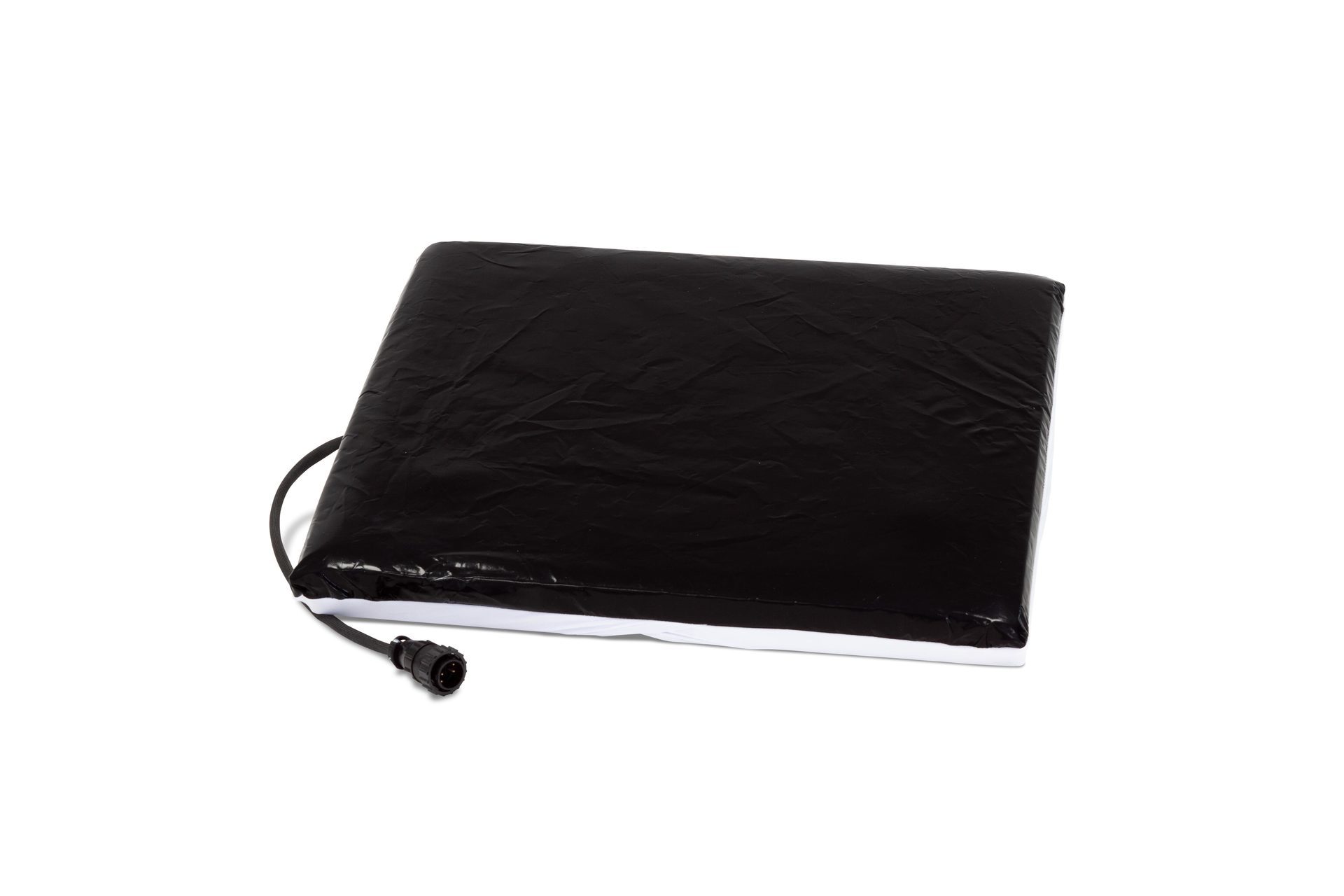

  - 3 sizes – 6″ x 6″, 11″ x 15″, 16″ x 20″ – to handle anything from full size garments to kid size, sleeves, and more

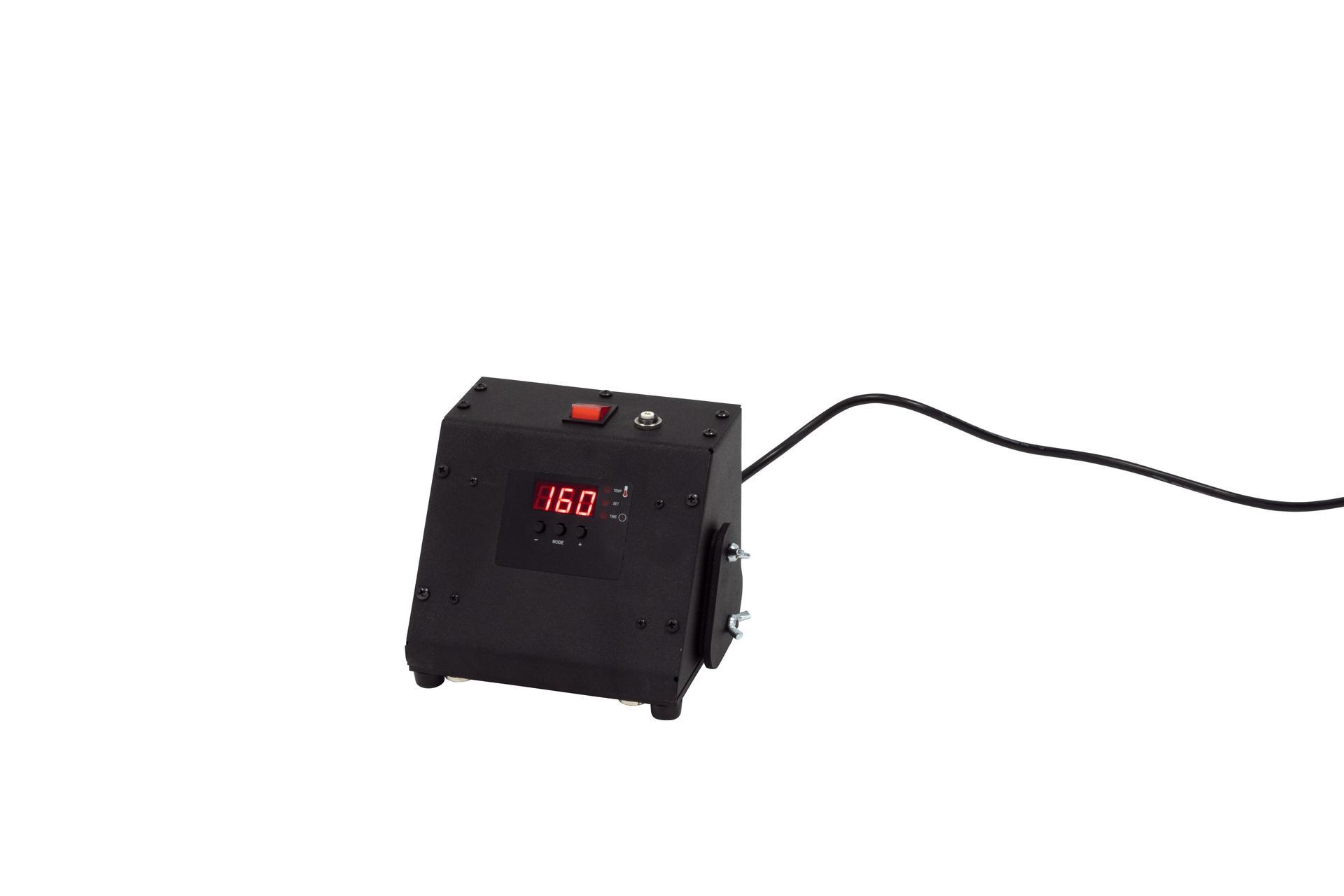

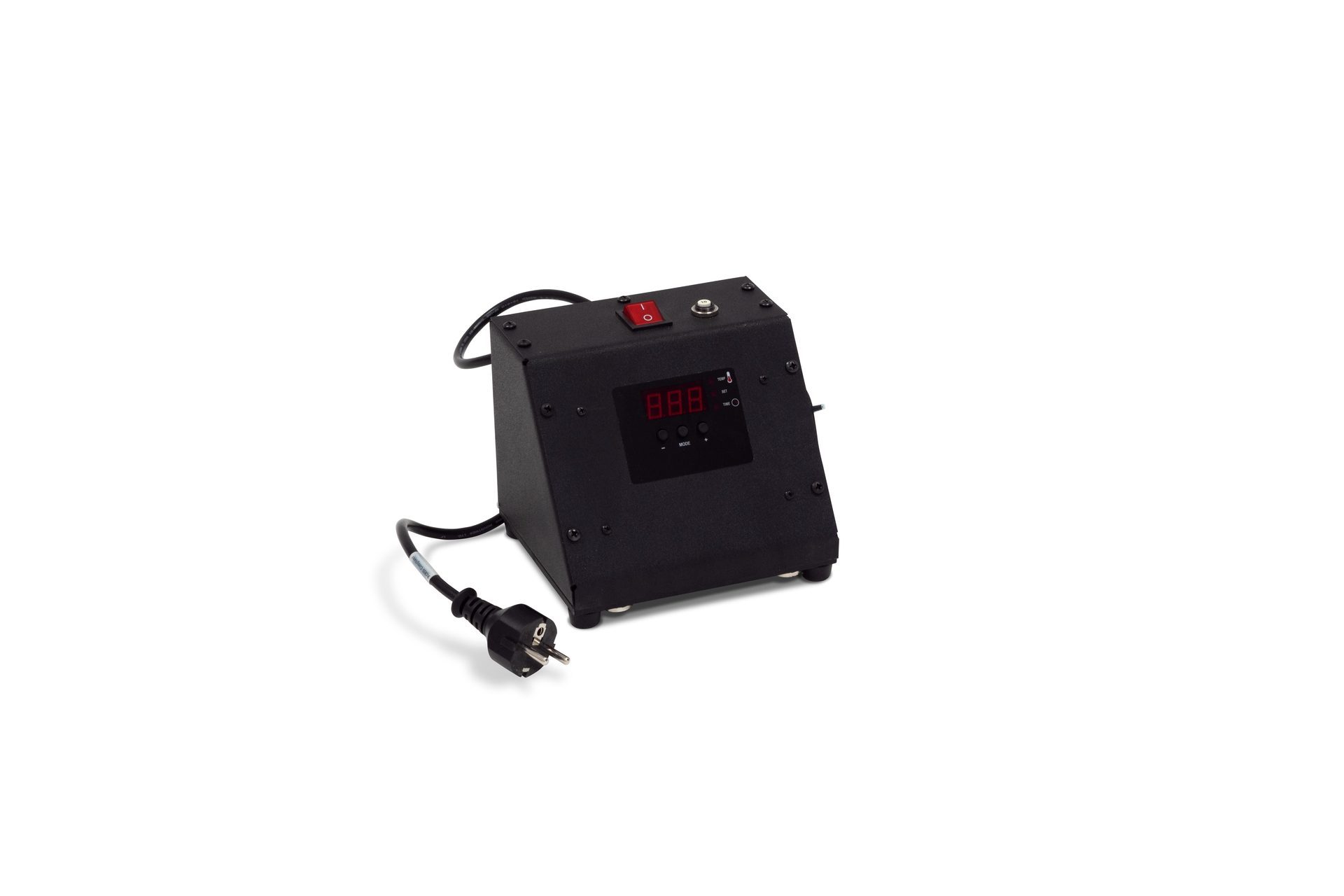

  - Controller includes digital temperature display for accurate application
  - Quick disconnect design allows you use one controller (sold separately) with different platen sizes
  - UL, ULc, CE approved
  - Two-year warranty
  - Must have designated circuit breaker

Benefits

- Applies heat from below, reducing the heat needed from the upper platen, eliminating scorching on heat-sensitive fabrics
- Insulating properties keep bottom of platen cool-to-the-touch when changing
- Fully Threadable when used with a Heat Press Caddie
- Eliminates the need to pre-heat garments and promotes a quicker bond between adhesive and fabric, reducing production time
- Reduced upper platen temperature protects delicate embroidery and appliqué from overheating, helping them retain their full dimension.
- Reduces the risk of dye migration on polyester substrates

The below application instructions have been successfully
tested with the following materials:

Fashion-FILM®
Glitter Flake™
Hi-Vis Color Reflect
Premium Plus™
Silicone Dye-Block™
Thermo-FILM®
SuperTEK

Application on 100% Polyester:
Lower platen temperature: 320°F
Upper platen temperature: 270°F
Time: 10 seconds (depending on thickness of garment)
Pressure: 60 psi (Medium/#6 on Hotronix machines)*

Application on 95% Polyester / 5% Spandex / Triblends:
Lower platen temperature: 290°F
Upper platen temperature: 270°F
Time: 30 seconds
Pressure: 60 psi (Medium/#6 on Hotronix machines)*

Test other brands of heat transfer vinyl
and fabrics before starting production

Note: Power Platen not recommended for use on 100% cotton fabrics. For blends with high cotton content proceed with caution. Test application using upper heat only, if it scorches test using lower heat.

*Decrease pressure for smaller Power Platen sizes:
16″ x 20″: 40-50 psi (#4 or 5 on Hotronix)
11″ x 15″: 30 psi (#3 on Hotronix)
6″ x 6″: 20 psi (#2 on Hotronix)
