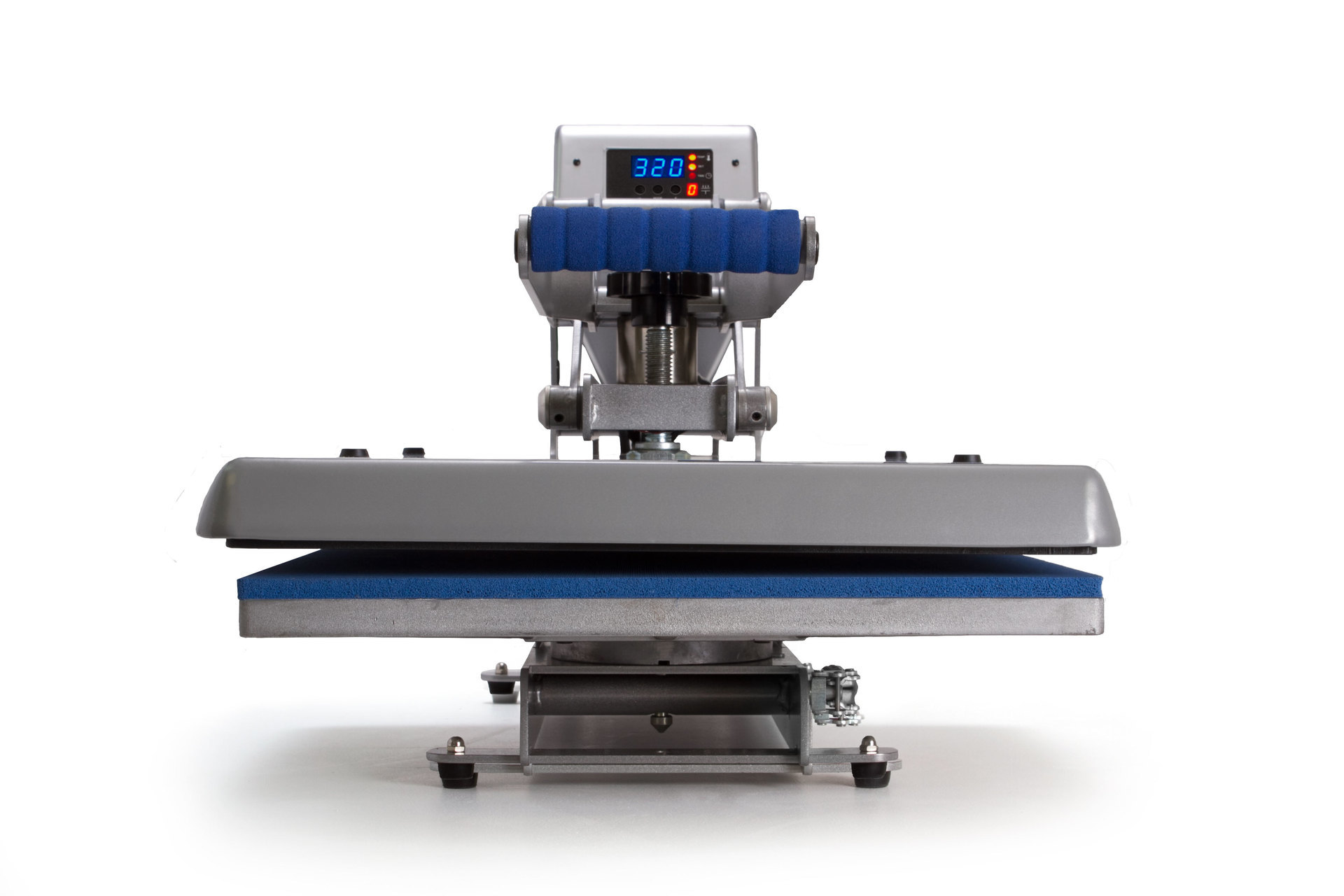

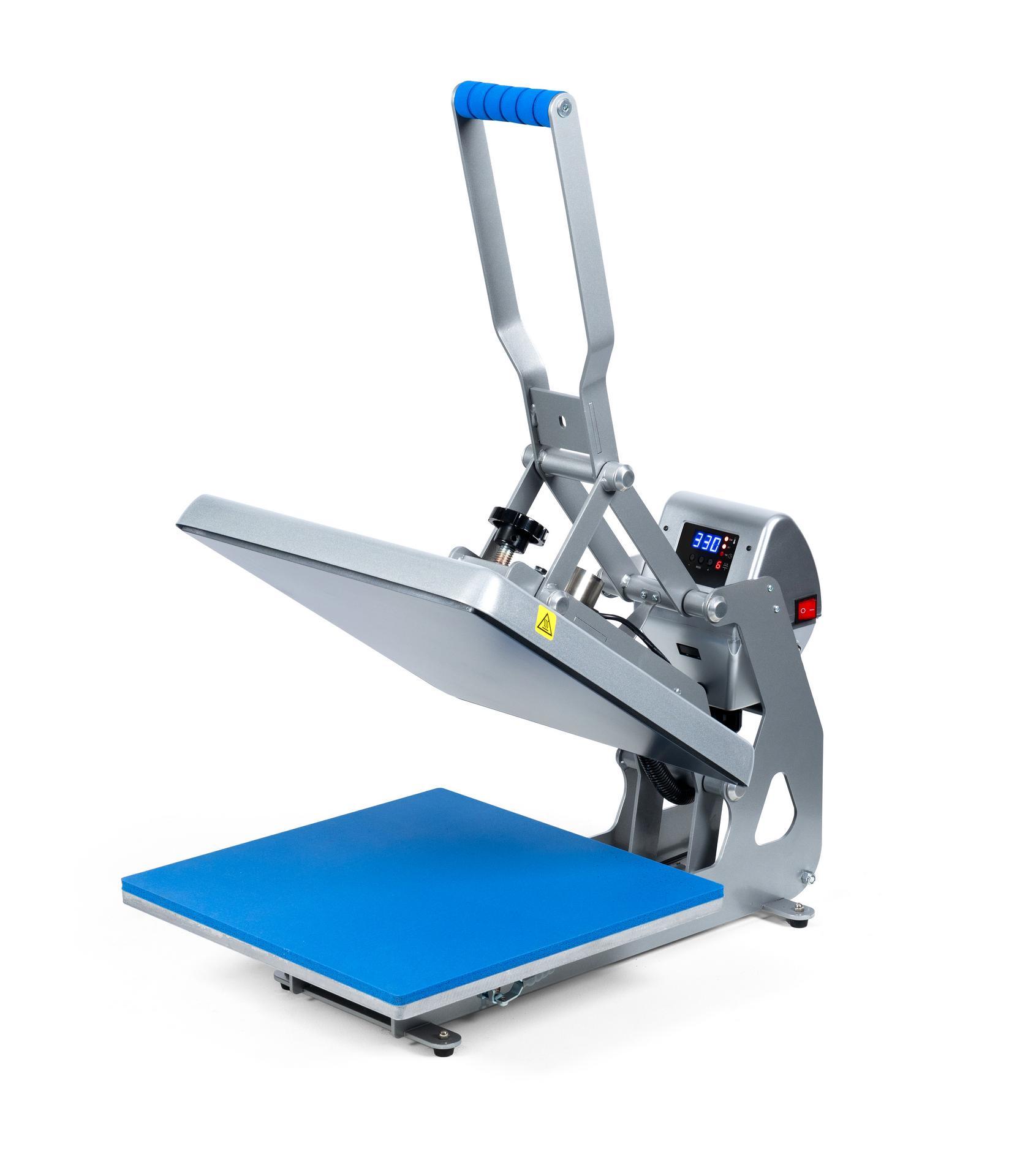

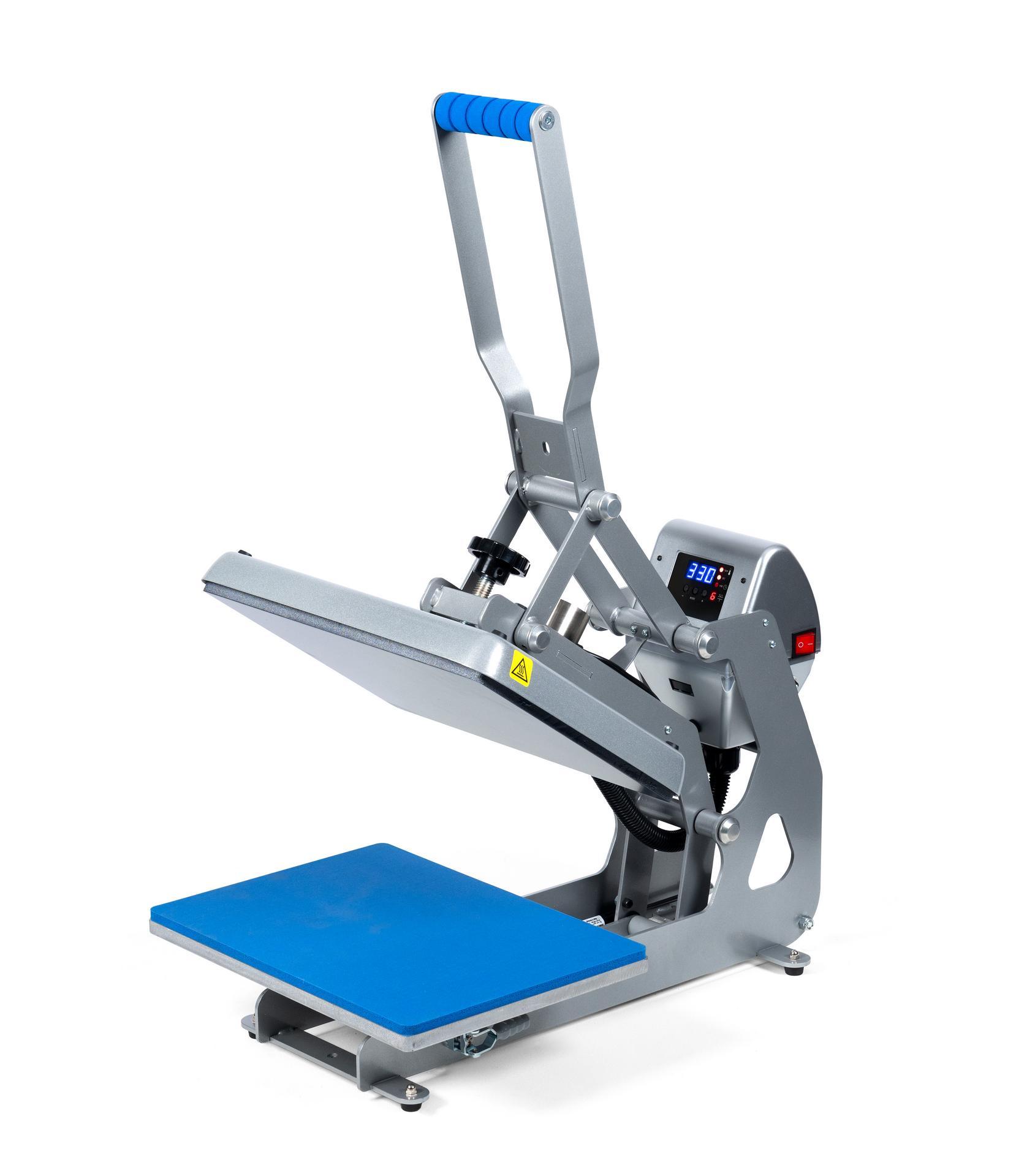

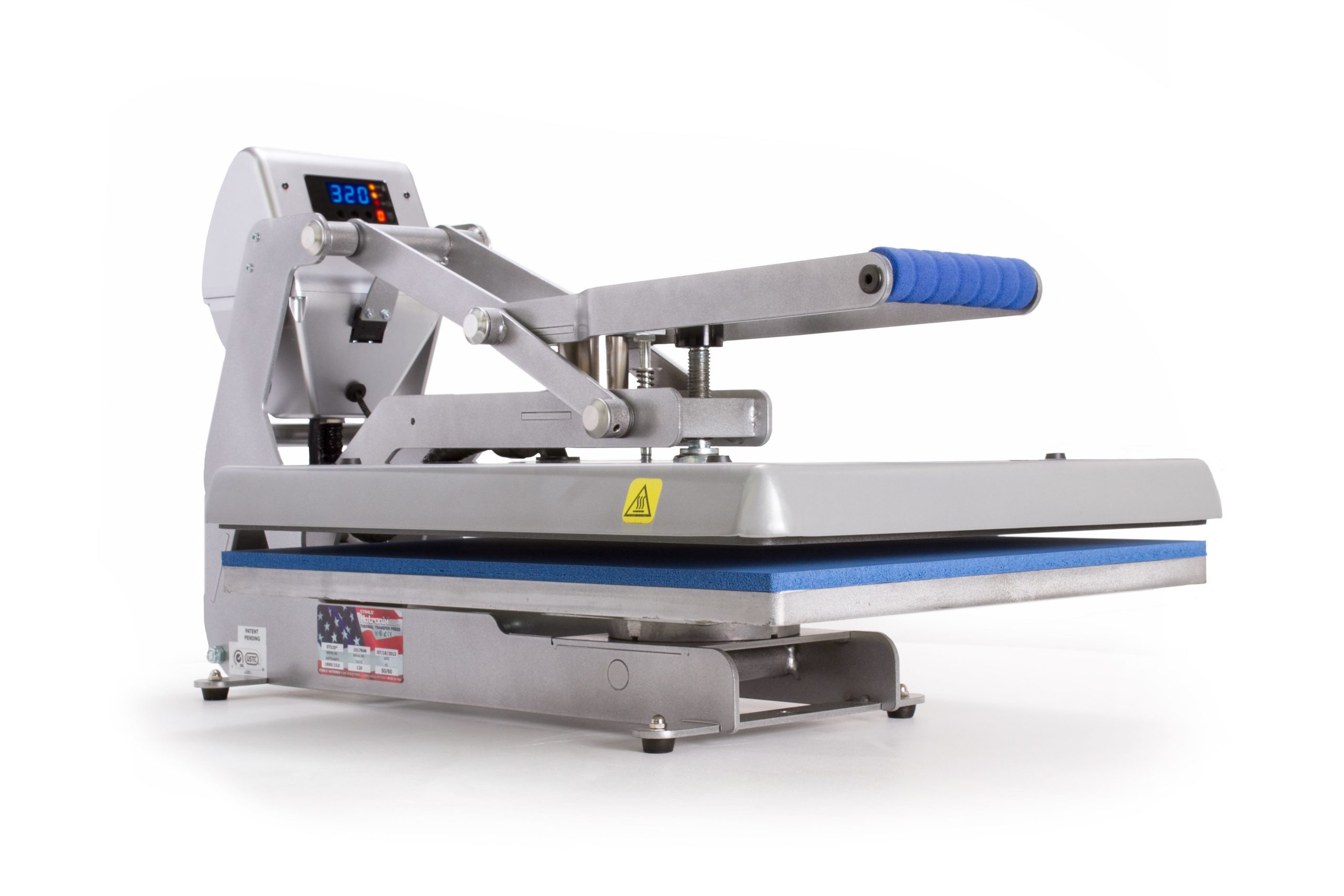

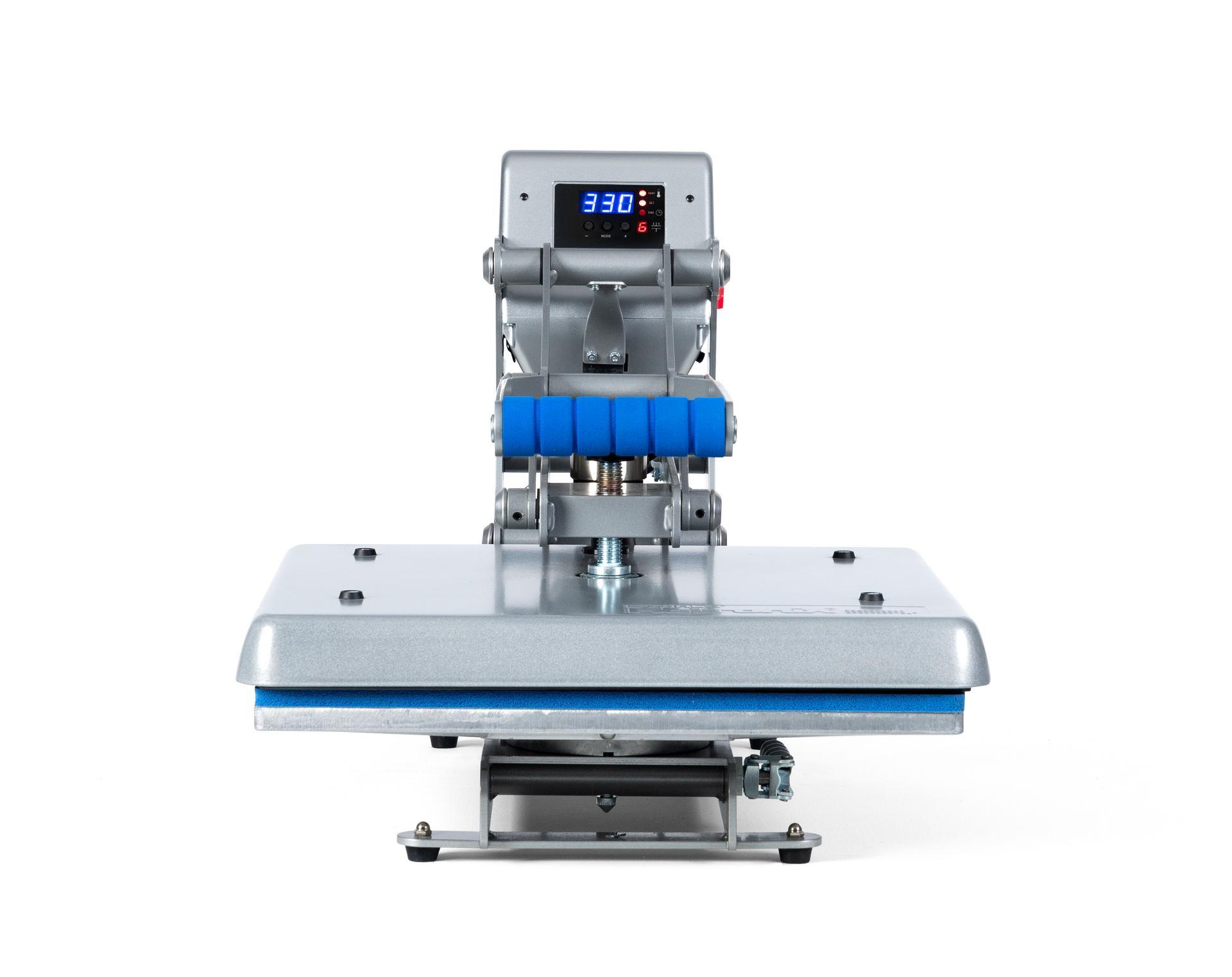

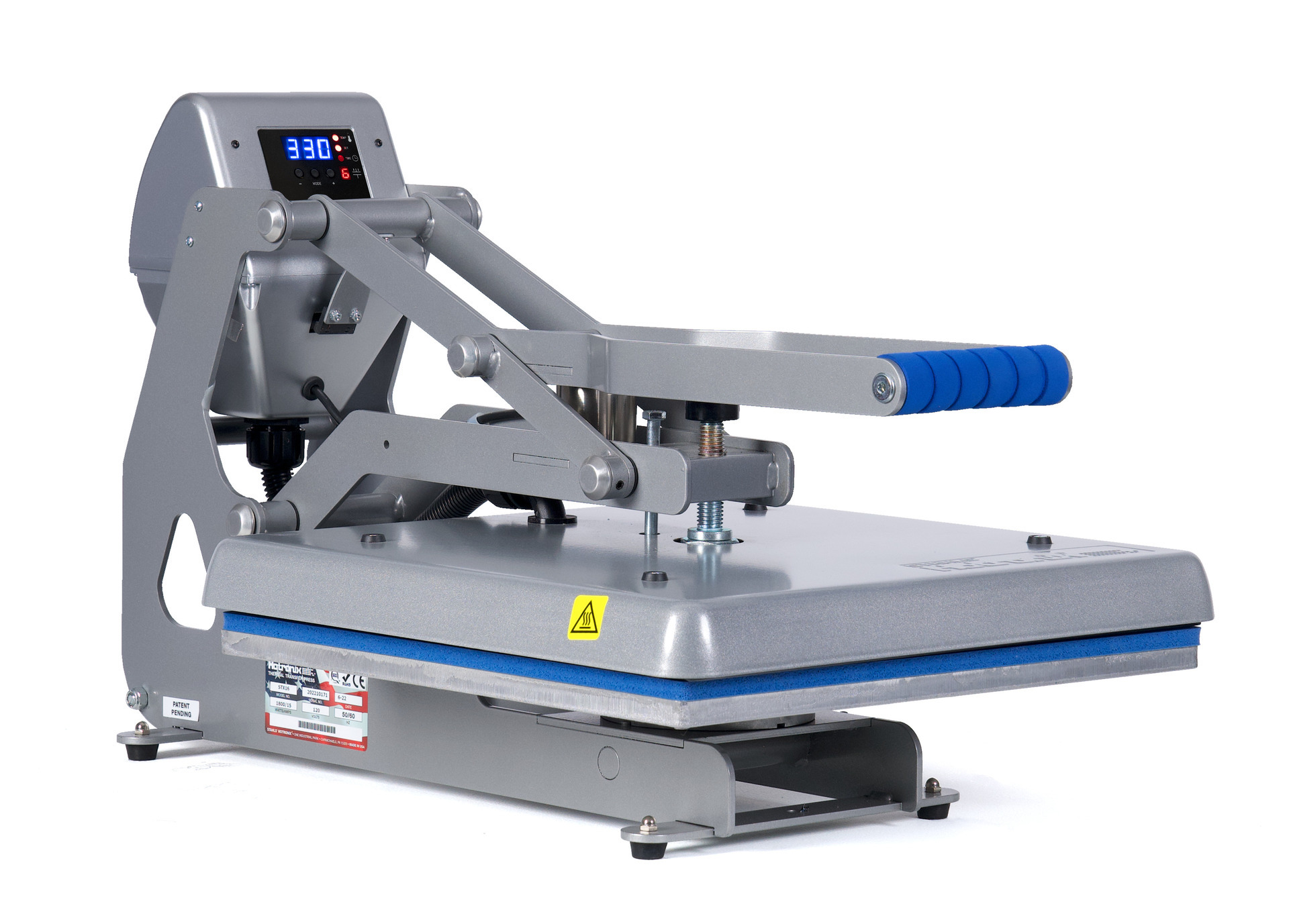

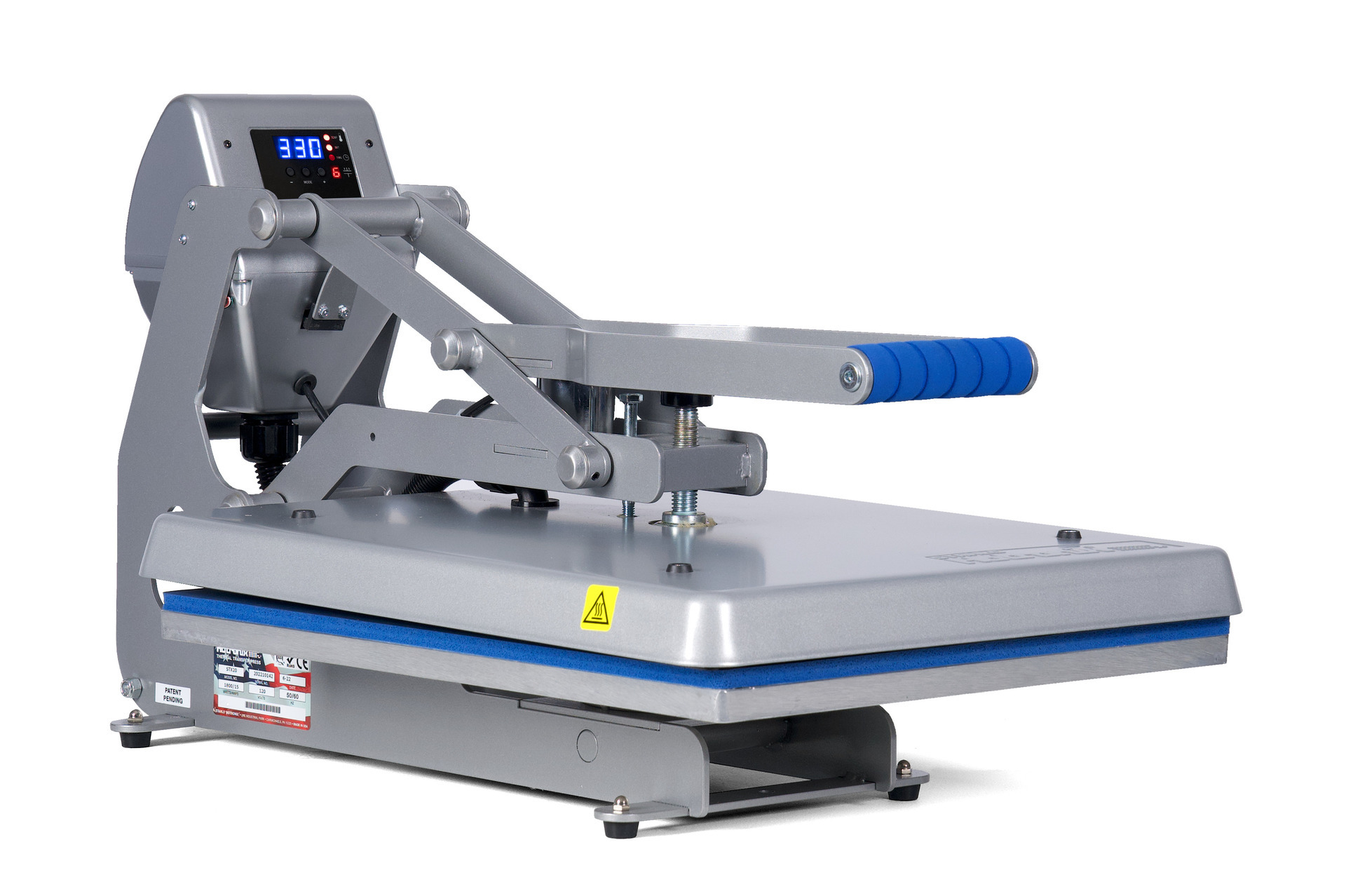

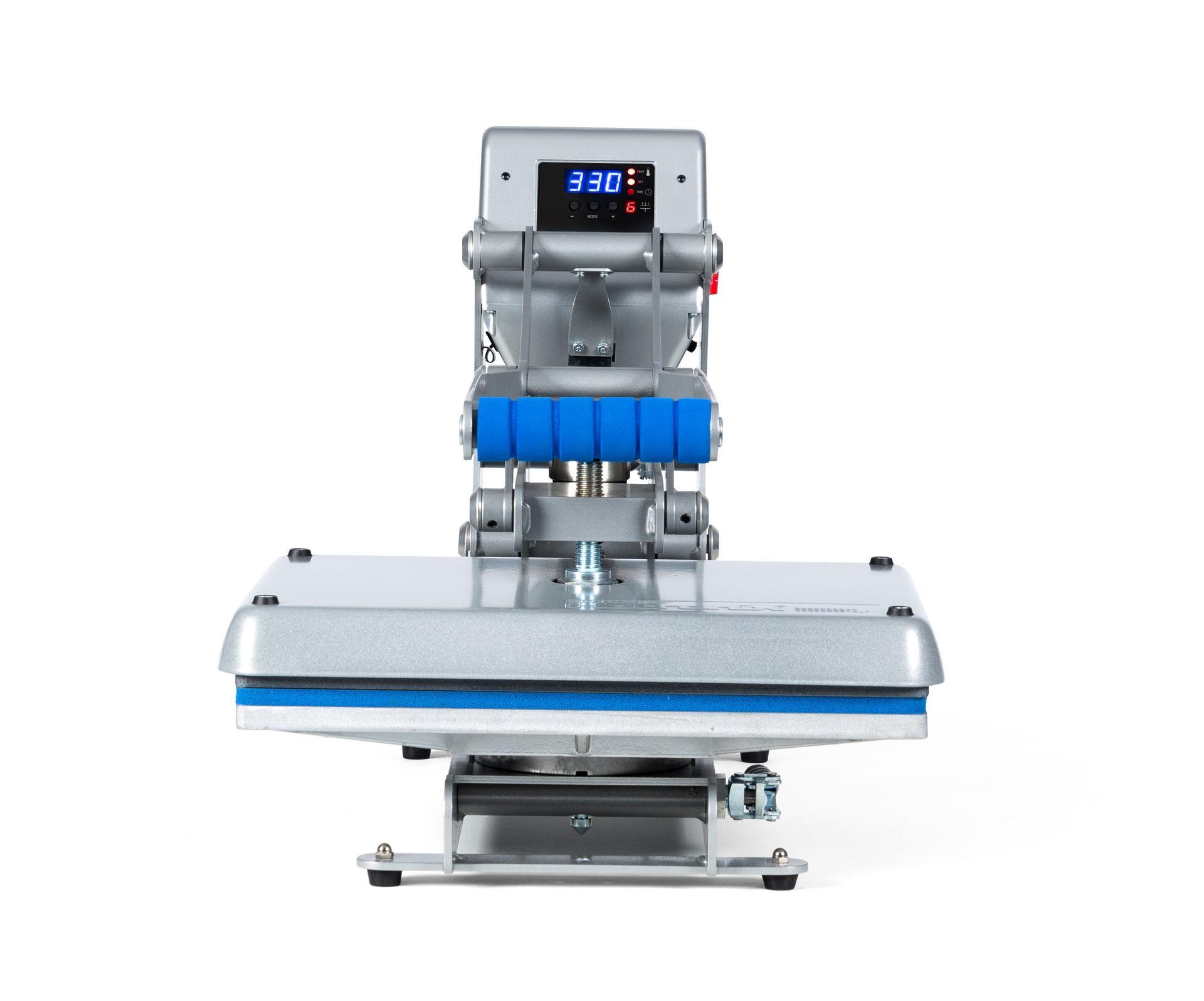

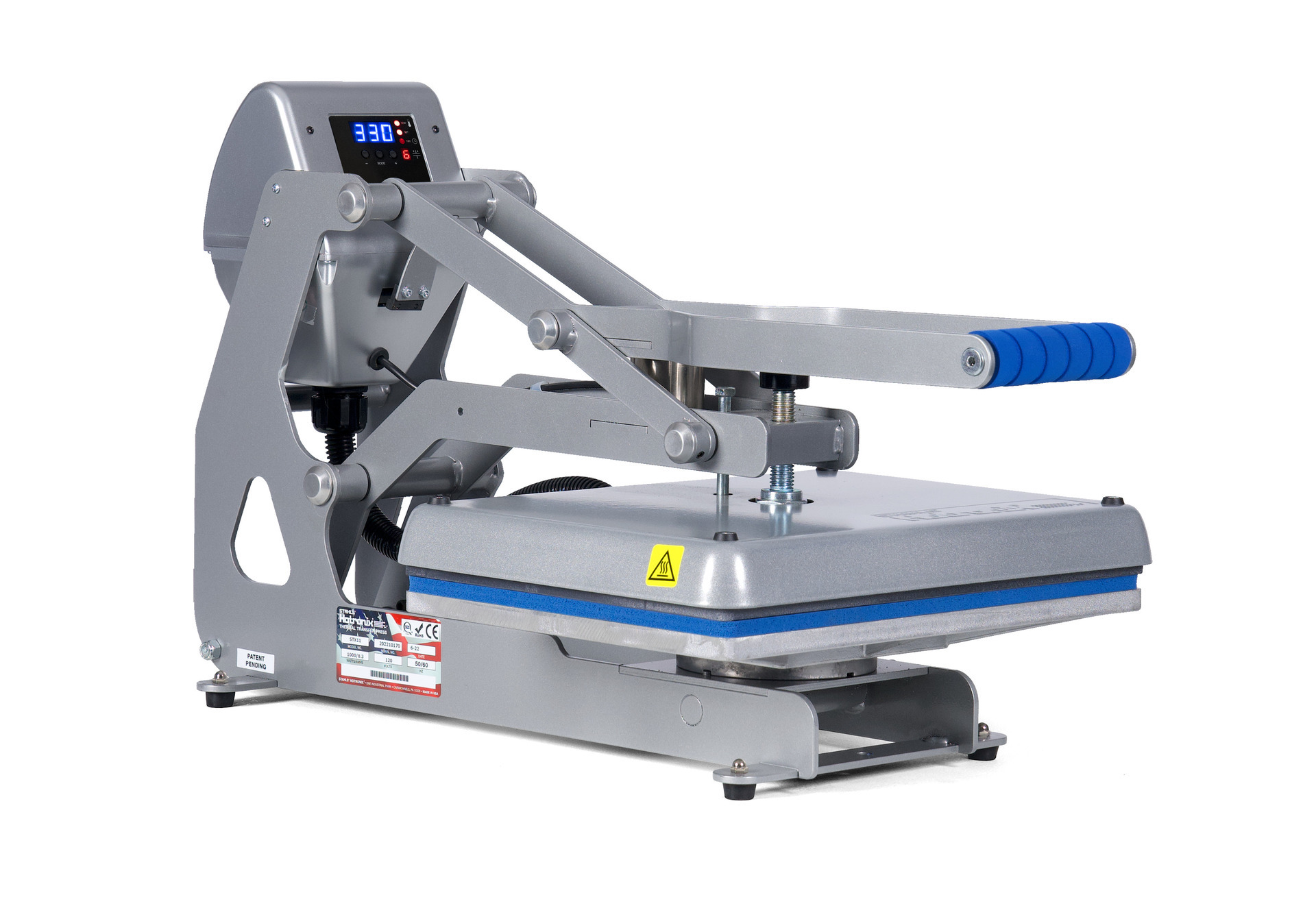

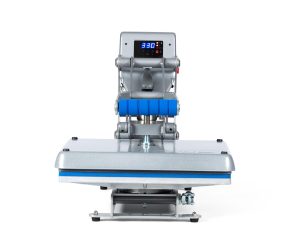

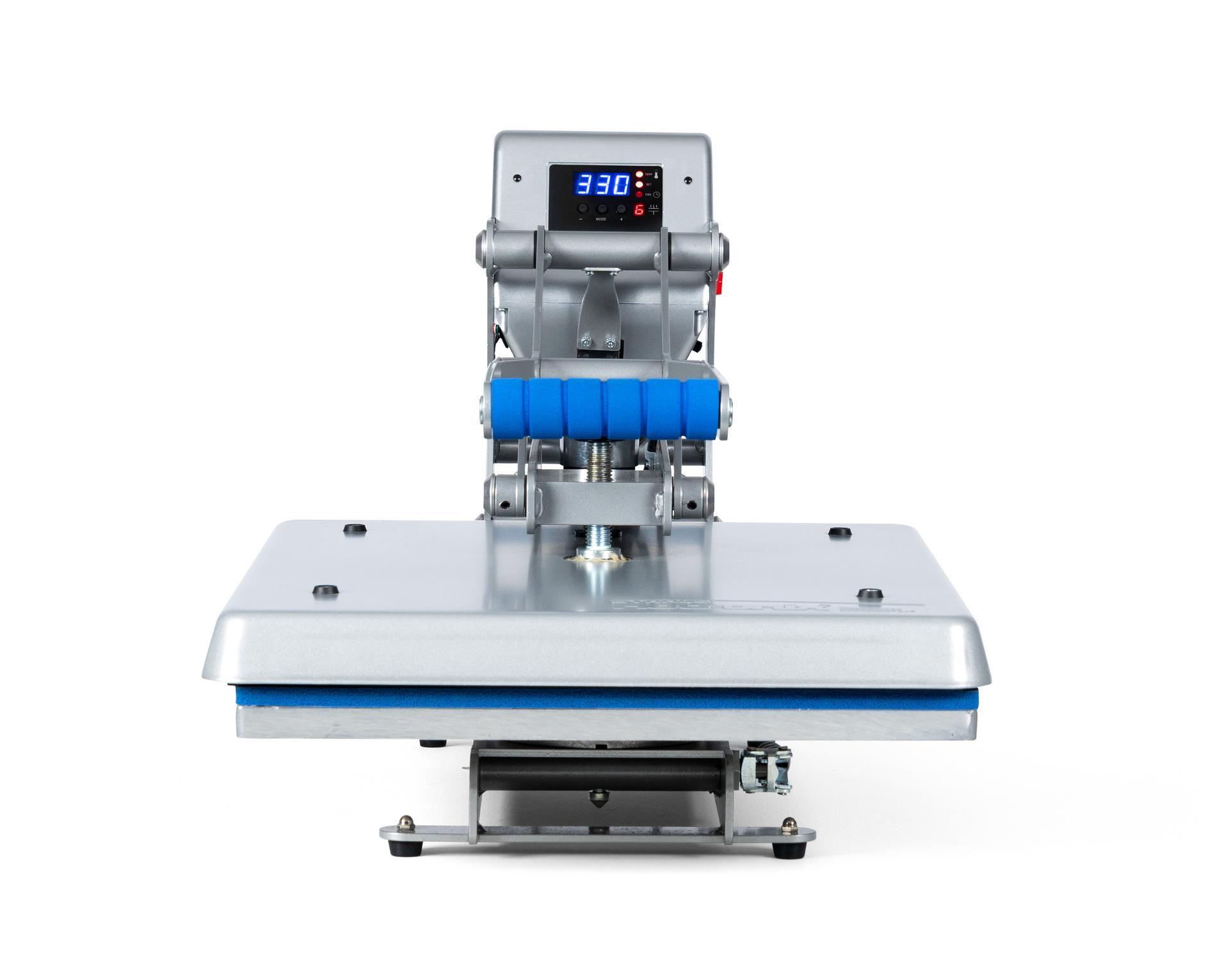

Hotronix® Auto Clam Heat Press
$1,350.00 – $2,050.00
Sale
Warranty on Parts & Labor
01 year
Warranty on Circuit Board
02 year
Warranty on Framework
05 year
Warranty on Heating Element
LIFETIME
Hotronix 16″ x 20″ Auto Open Heat Press
This model automatically opens once the application time is complete, and has two timers to allow a preheating before the application!
More Details
Technical Specifications
Features
- Patented Magnetic Auto Open Feature.
- 3/4″ thick non-stick coated upper platen.
- Patented Magnetic Assist Lock Down.
- Interchangeable lower platens (optional).
- Platinum RTD heat sensor.
- Cast-in tubular heating element every 2″ to ensure the absence of cold spots.
- Over-center pressure adjustment.
- UL/ULC/CE/ROHS approved.
- Temp. range 205° – 420°F.
- °F or °C available.
- 11 x 15 Electrical Options:
120 v; 8.3 amps; 1000 w
240 v; 4.5 amps; 1000 w - Must have designated circuit breaker
- 16 x 16, 16 x 20 Electrical Options:
120 v; 15 amps; 1800 w
240 v; 7.5 amps; 1800 w
Print these 6 Heat Press Care Tips and keep them close to your heat press to help keep it in shape.
- Actual Weight:
11 x 15: 59 lbs
16 x 16: 77 lbs
16 x 20: 87 lbs - Shipping Weight:
11 x 15: 72 lbs
16 x 16: 90 lbs

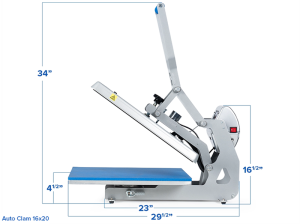

16 x 20: 100 lbs - Dimensions:
11 x 15 model: 28″ x 16″ x 17″
16 x 16 model: 28″ x 17″ x 17″
16 x 20 model: 29″ x 17″ x 17″ - Shipping Dimensions: 36″ x 25″ x 21″ for all models
Warranty
- Lifetime Warranty on Heating Element
- 5 yr on Framework
- 2 yr on Circuit board
- 1 yr parts/labor
Operators Manual
Download the Hotronix Auto Clam Operators Manual
Hotronix Tech Support & Replacement Parts
| Platen Size | 11 X 15, 16 X 16, 16 X 20 |
|---|
